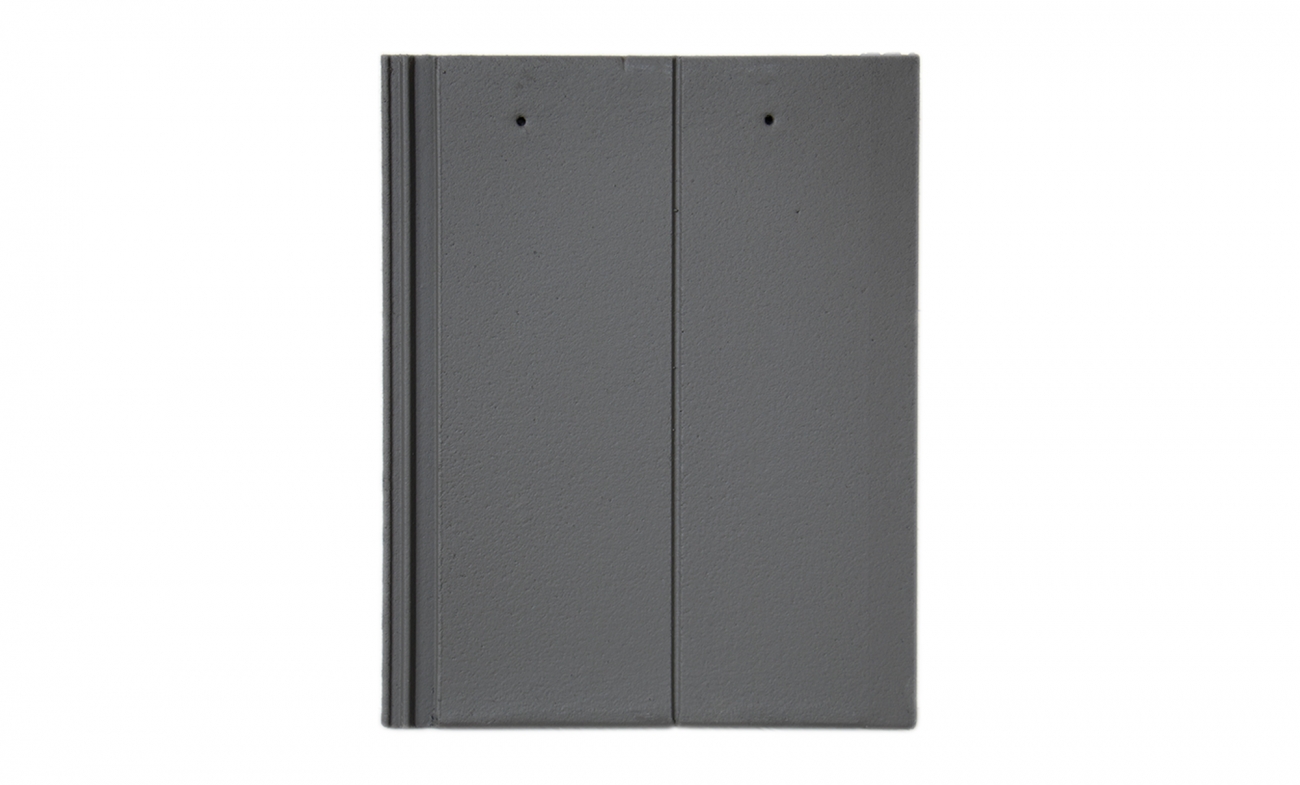

PLANUM 2 DUO CONCRETE FLAT TILE

The Planum 2 Duo’s thin leading edge and a covering capacity of just 9.8 tiles per m2 with a minimum roof pitch of 15° makes installation easy and economical. Laid broken bonded the Duo gives a realistic appearance of a smaller format roof tile while providing all the advantages of a large format concrete tile.

Length:
420mm

Width:
332mm

Gauge:
312 340mm

Covering Width (mm):
300 ± 2.0

Minimum Roof Pitch:
15º

Number of Tiles Per m2:
9.8

Weight Per Tile:
5.0 kg

Weight Per m2 (min):
50 kg

Battens Per m2 (min):
3 – 32

Batten Size:
50 x 25

Fixing Clips:
Eaves and Tile Clips

Nails – Ring Shank Aluminium Alloy:
45 x 3.35mm

Screw fixings recommended for low pitch:
4.5 x 45mm
