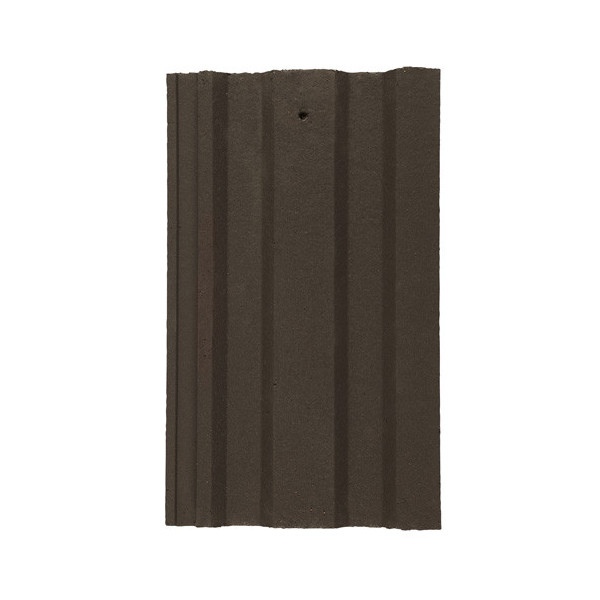

Marley Ludlow Plus
*Sold Individually*
Description
The Ludlow Plus is a small format interlocking tile from Marley with a timeless and functional design that is ideal for refurbishment application. The small size of this tile makes it easier to handle on site and reduces potential wastage.
| Size of Tile | 387 mm x 229 mm |
| Minimum Pitch | 25 ° Smooth (75 mm headlap) 30 ° Granular (75 mm headlap) 22.5 ° Granular (100 mm headlap) |
| Maximum Pitch | 90 ° |
| Minimum Headlap | 75 mm |
| Maximum Gauge | 312 mm |
| Profile Depth | 20 mm > d > 5 mm |
| Cover Width | 204 mm (nominal) |
| Hanging Length | 361 mm (nominal) |
| Covering Capacity (Net) | 15.7 Tiles / m² at 75 mm headlap 17.1 Tiles / m² at 100 mm headlap |
| Weight of Tiling (Approx.) | 45 kg / m² (0.44 kN / m²) at 75 mm headlap 49 kg / m² (0.48 kN / m²) at 100 mm headlap |
| Batten Required (Net) | 3.2 lin.m / m² at 75 mm headlap 3.5 lin.m / m² at 100 mm headlap |
| Batten Size Recommended (Fixed to BS 5534) | 38 x 25 mm for rafters/supports not exceeding 450 mm centres 50 x 25 mm for rafters/supports not exceeding 600 mm centres |
| Tile Nails | 50 mm x 3.35 mm |
| Fixing Clips | Eaves, Verge and Tile Clips |
