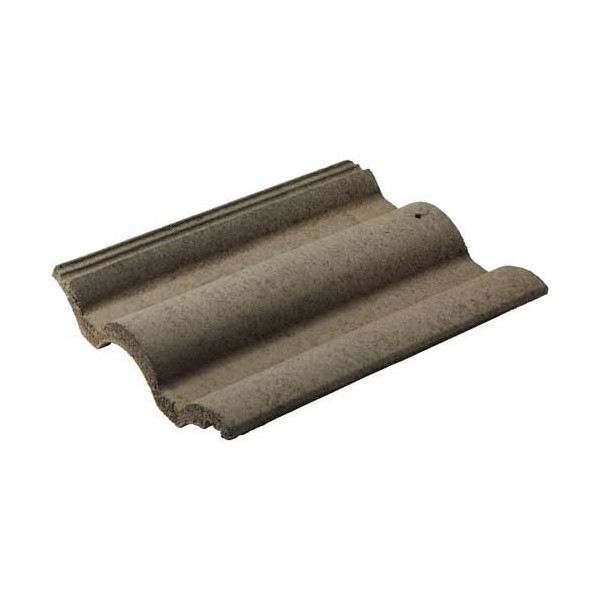

BMI Redland Regent

• Regent tiles are characterised by their high, bold roll profile, creating a striking and unique effect on the roof.
• Can be laid at pitches as low as 12.5 deg.

Size : 418mm x 332mm.
Minimum pitch :
Through coloured.
12.5° at 100mm headlap.
17.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch : 90° – subject to fixing specification.
Maximum headlap : 125mm.
Minimum gauge : 293mm.
Maximum gauge : 318mm below 17.5°.
343mm at 17.5° and over.
Tile thickness : 25mm.
Coverage : 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight : 4.89 tonnes/1000.
Batten size : 38mm x 25mm – rafter centres up to 450mm.
50mm x 25mm – rafter centres up to 600mm.
Battens required : 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size : 75mm x 3.75mm.
Tile finish : smooth – through coloured.
Tile profile : profiled.
